SpeedyBee F405 V4 BLS 60A 30×30 Flight Controller & 4-in-1 ESC Stack
SKU: 01330
₹12,000
₹9,500
The SpeedyBee F405 V4 BLS 60A 30×30 Stack is a compact and feature-rich electronics stack designed for FPV freestyle, racing, long-range and custom drone builds.
The SpeedyBee F405 V4 BLS 60A 30×30 Stack is a compact and feature-rich electronics stack designed for FPV freestyle, racing, long-range and custom drone builds.
It combines the SpeedyBee F405 V4 Flight Controller with a 60A 4-in-1 ESC, providing a clean and convenient setup for controlling four brushless motors. The FC supports Bluetooth configuration through the SpeedyBee App, while the ESC includes protection and filtering features for reliable power delivery.

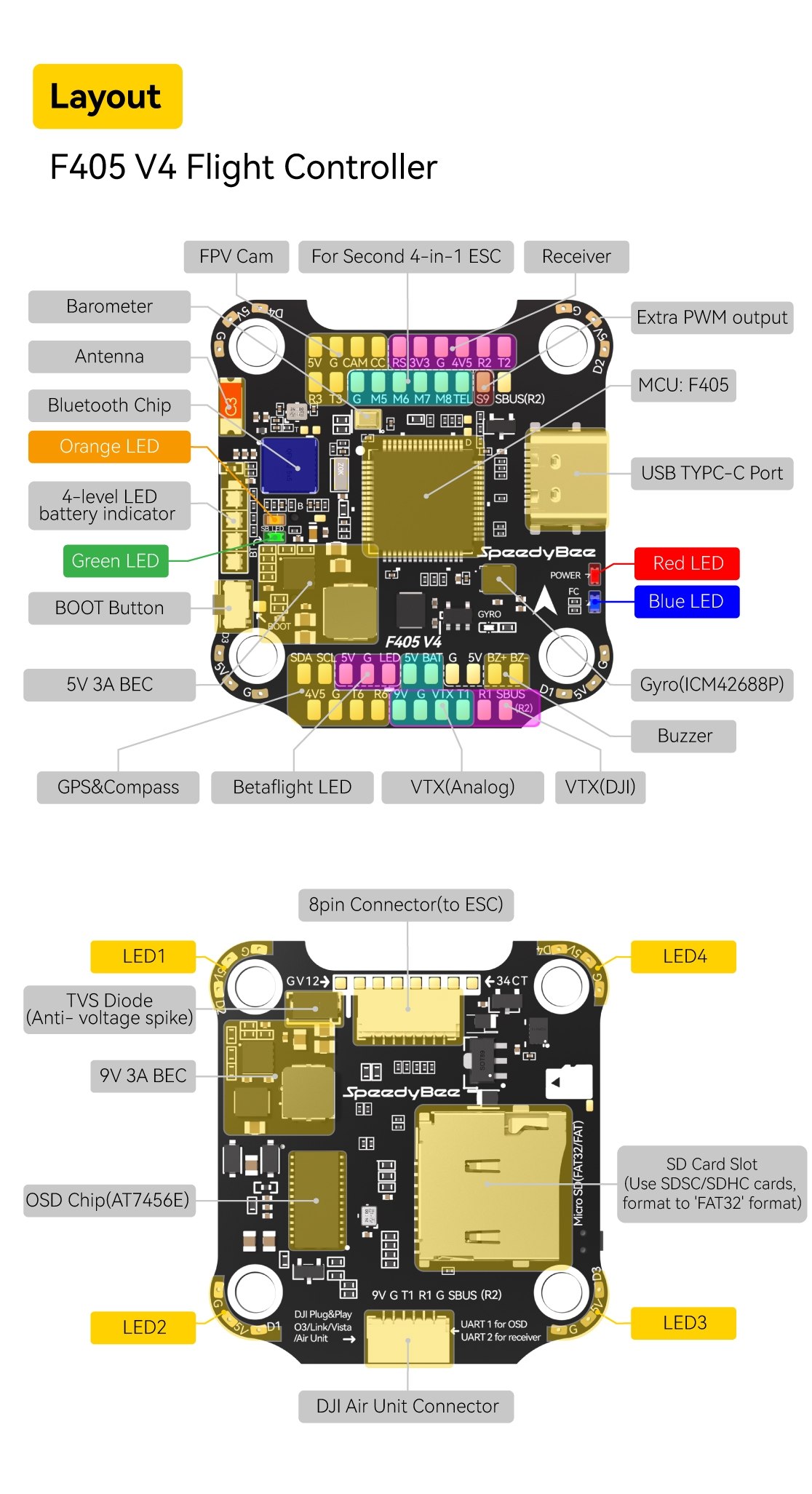

Flight Controller Specifications
MCU: STM32F405

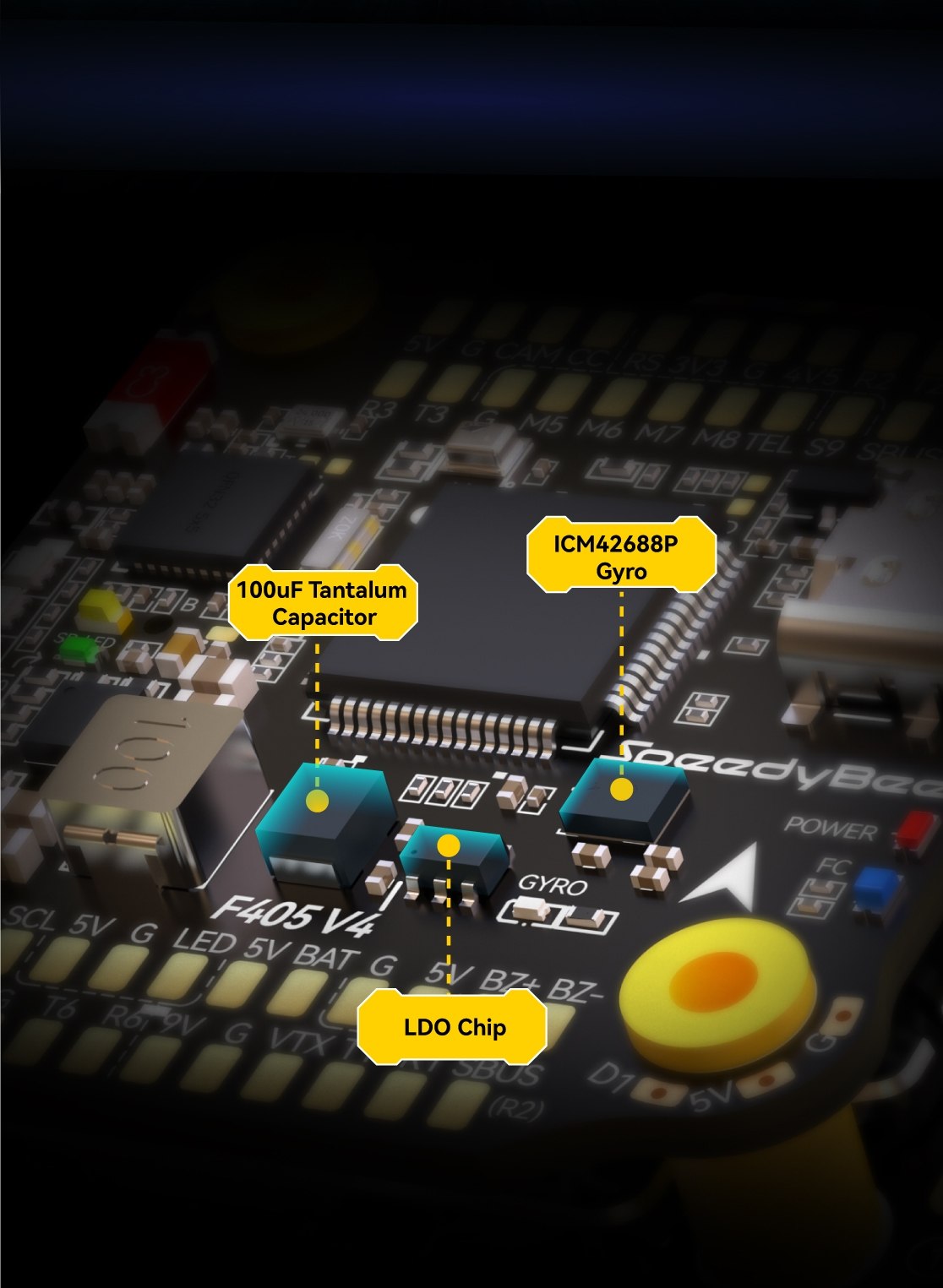

Gyro / IMU: ICM42688P
OSD: AT7456E

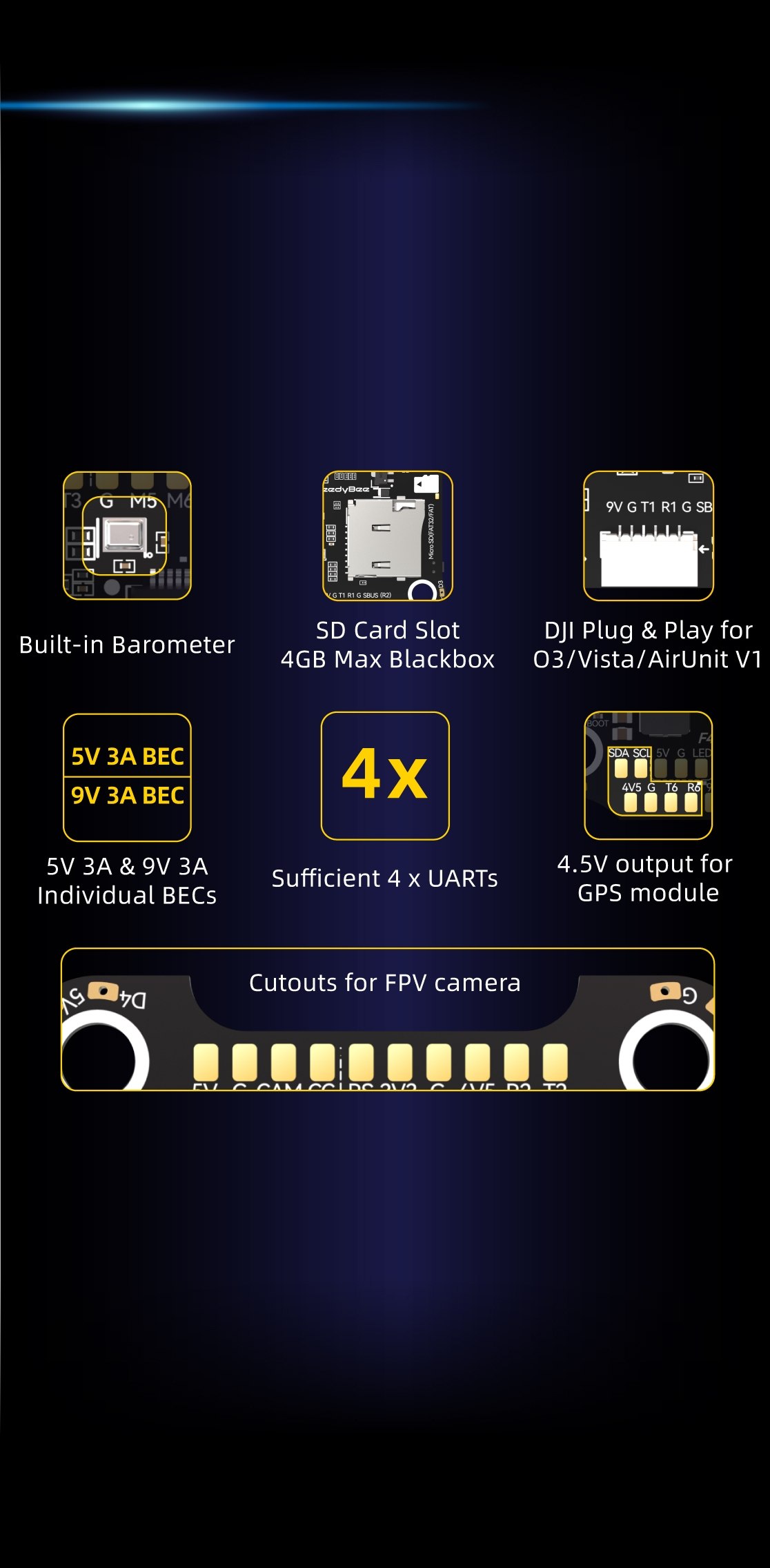

Barometer: Built-in
USB: USB Type-C
Bluetooth: Supported for configuration

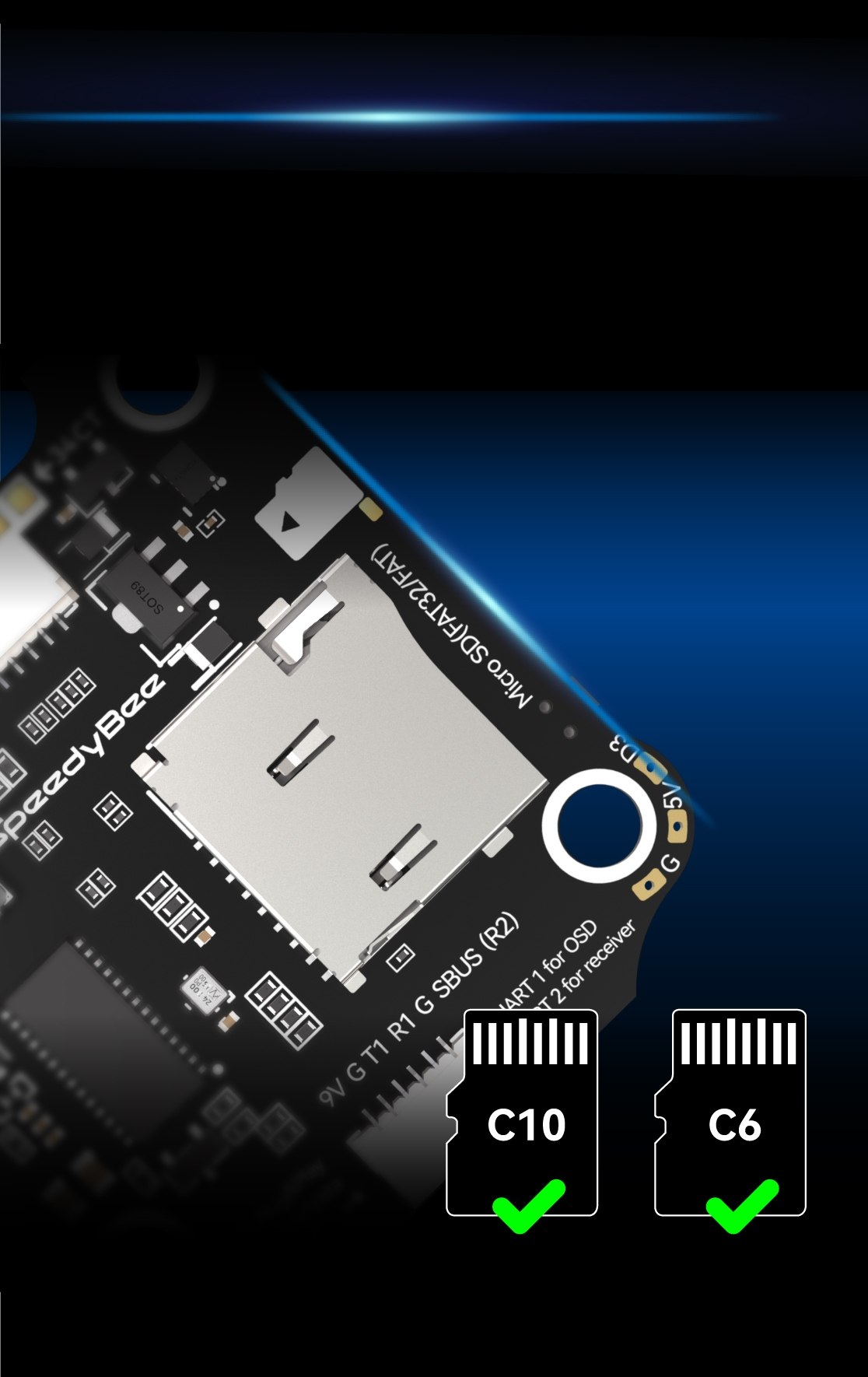

Blackbox: MicroSD card slot, up to 4GB recognized by Betaflight
Firmware Target: SPEEDYBEEF405V4
Default Firmware: Betaflight
UARTs: 6
I2C: Supported
Buzzer: Supported
BOOT Button: Supported
RSSI Input: Supported
LED: 4 LED strip outputs
Mounting: 30.5 × 30.5mm
FC Weight: Approx. 10.5g
Power & BEC
Input: 3S–6S LiPo
5V Output: Up to 3A total
9V Output: Up to 3A total
3.3V Output: Up to 500mA
4.5V Output: Up to 1A

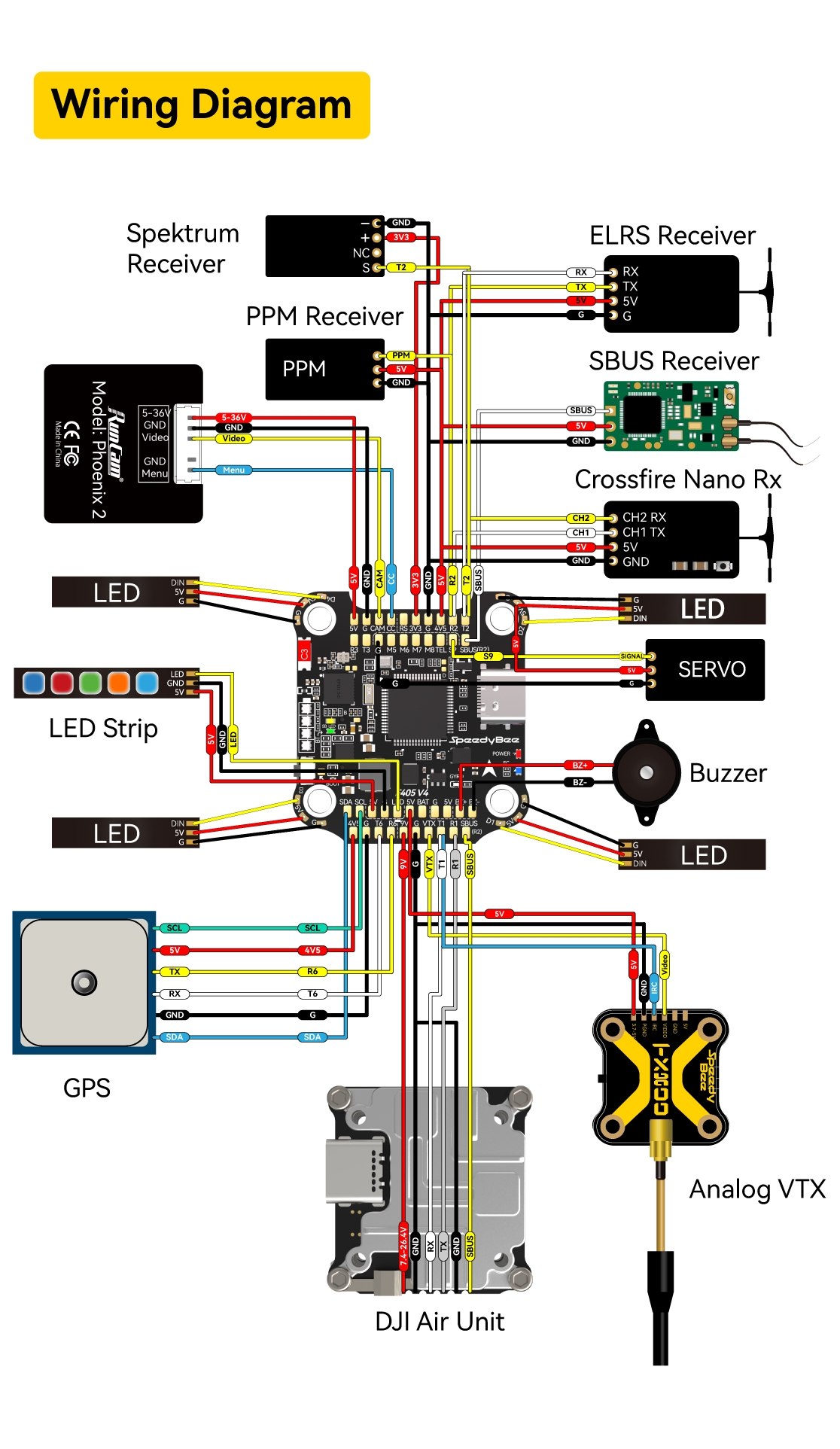

Suitable for connecting compatible receivers, GPS, VTX and other FPV peripherals.
60A 4-in-1 ESC Specifications
ESC Type: 4-in-1 Brushless ESC
Continuous Current: 60A × 4
Burst Current: Up to 80A for 10 seconds
Battery Support: 3S–6S LiPo
Firmware: BLHeli_S
Motor Protocol: DShot300 / DShot600
Current Sensor: Supported
TVS Protection: Yes

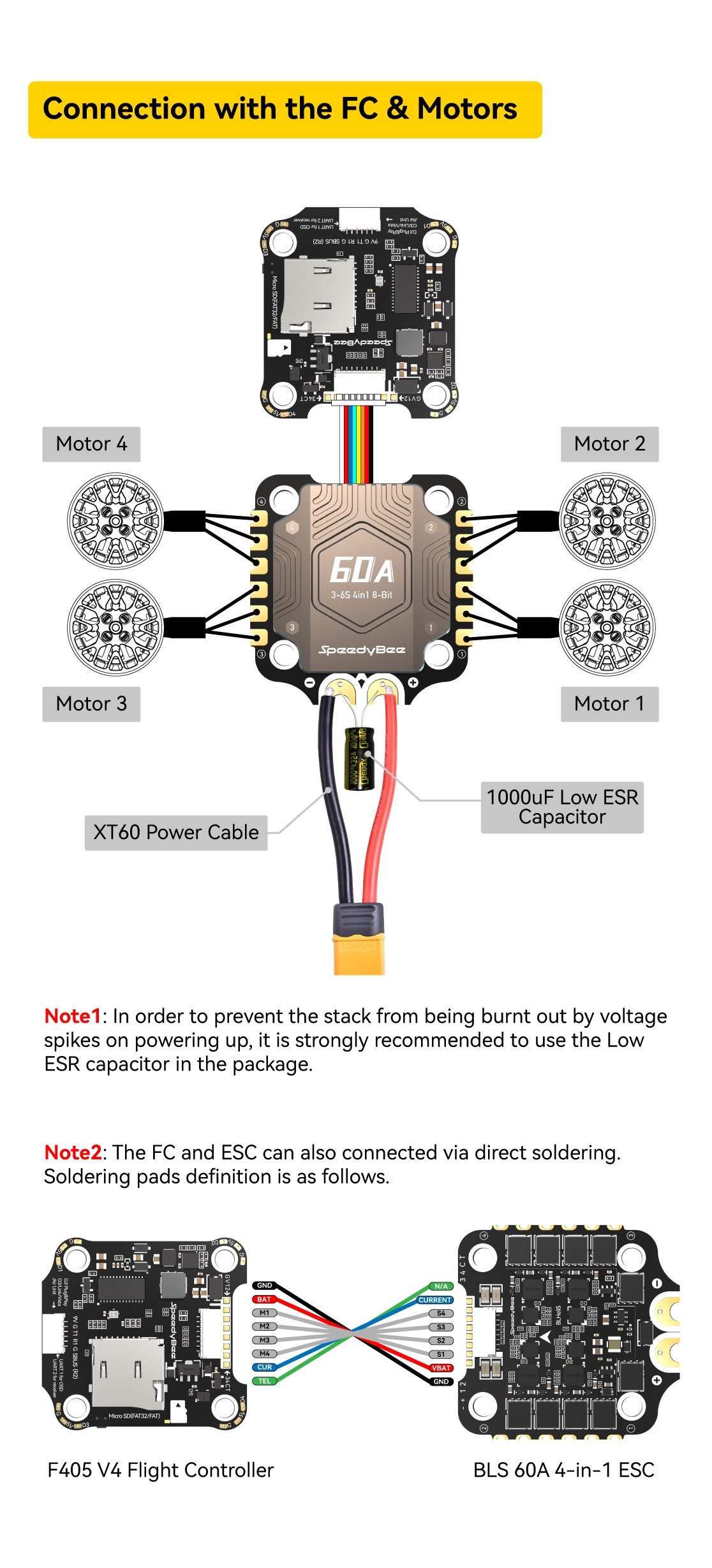

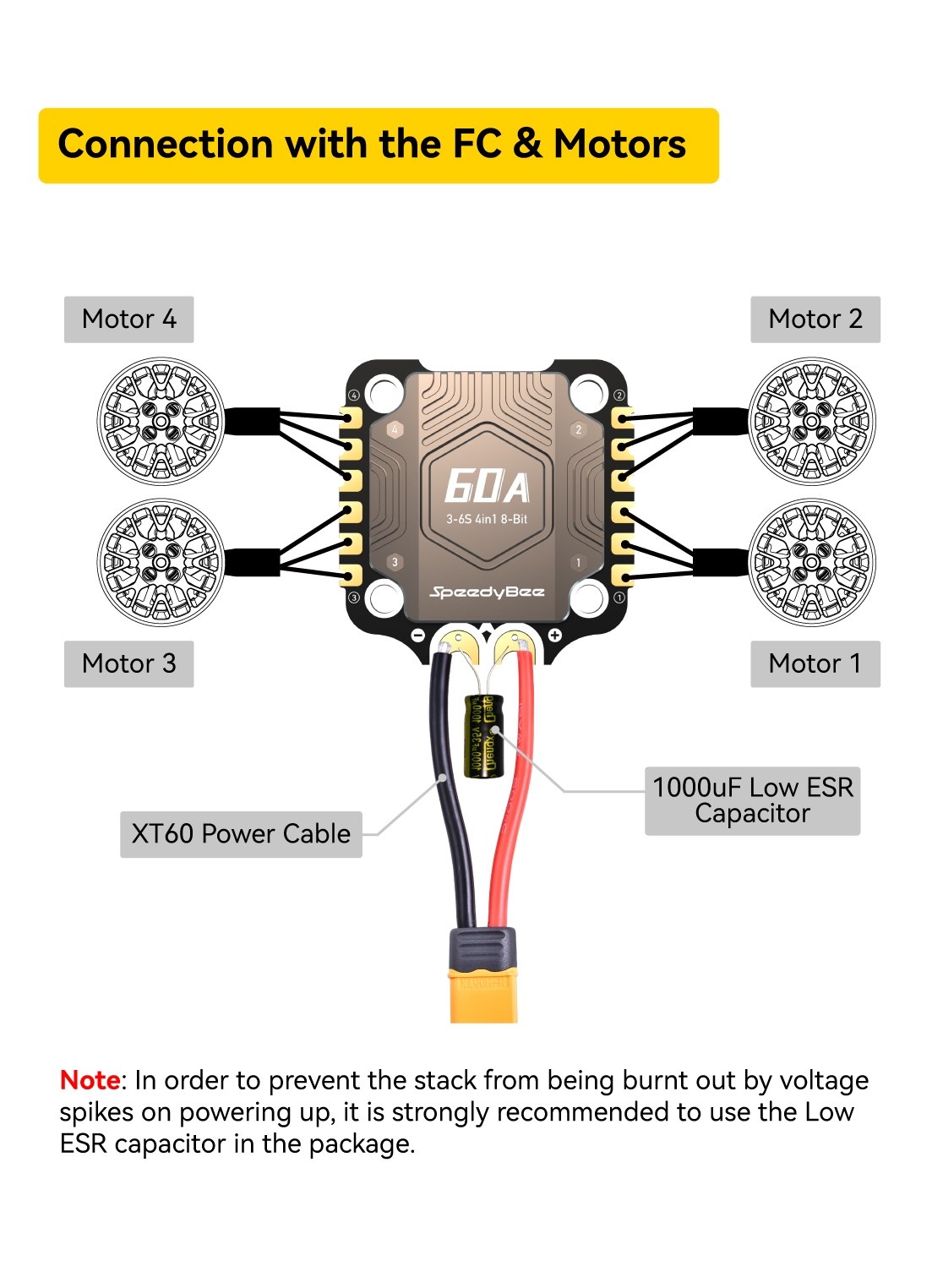

External Capacitor: 1000µF Low-ESR capacitor included
Mounting: 30.5 × 30.5mm
ESC Weight: Approx. 23.5g
Special Features

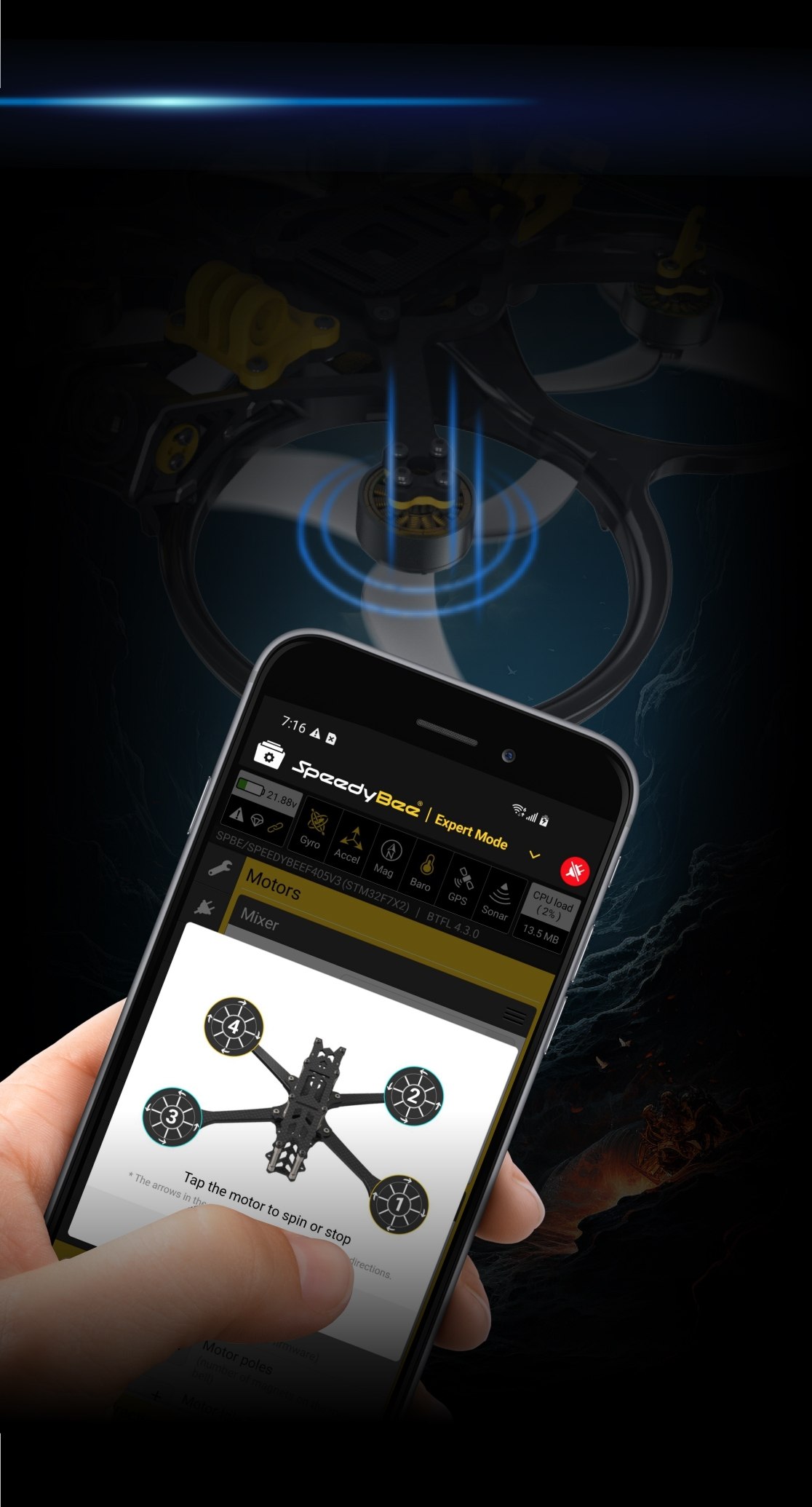

📱 Bluetooth Configuration
The FC and ESC can be configured using the SpeedyBee App, allowing convenient wireless setup and adjustment without always needing a computer.
🛡️ ESC Protection & Filtering
The ESC uses a TVS protective diode, onboard filtering components and an external 1000µF low-ESR capacitor to help reduce voltage spikes and electrical noise.

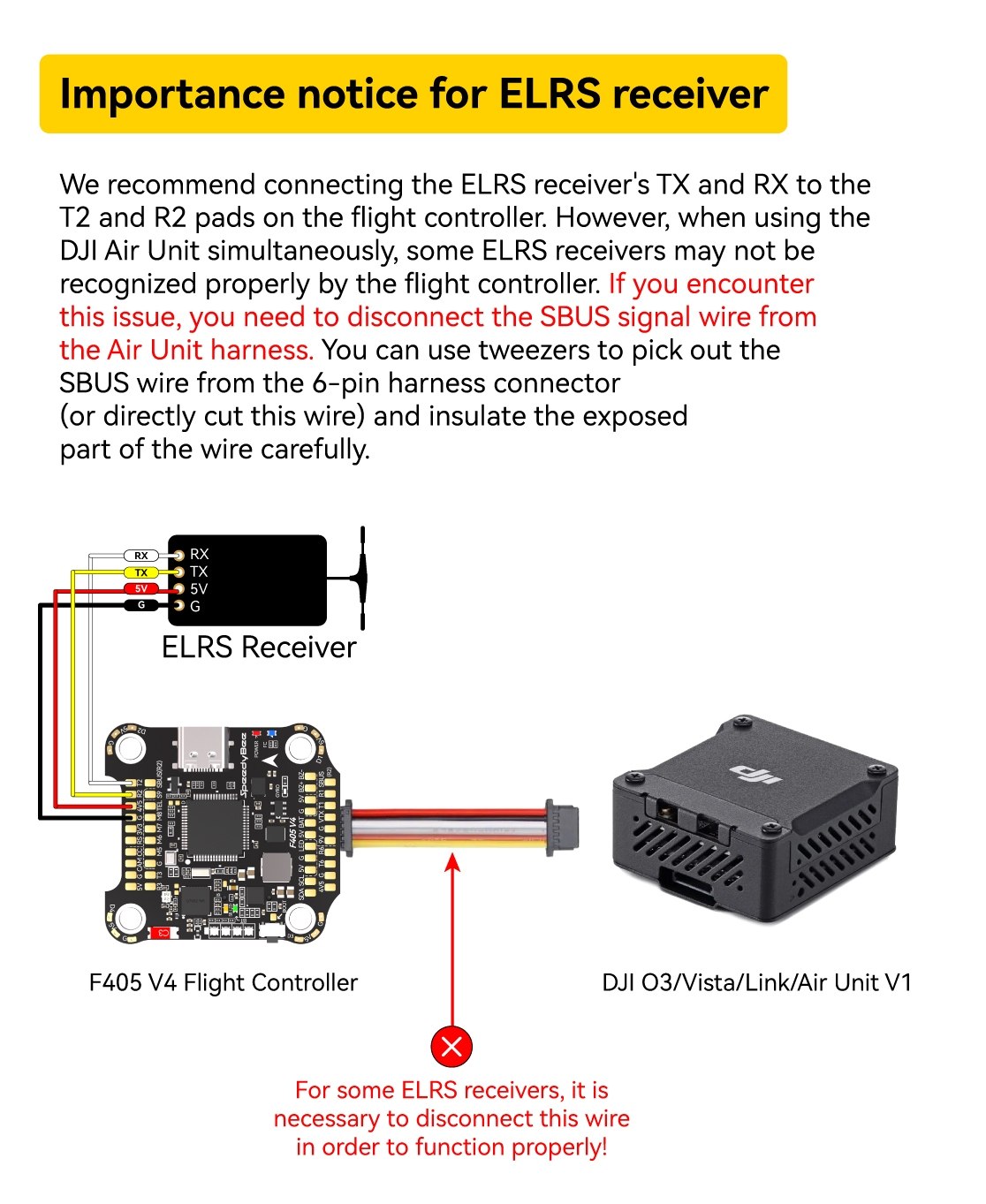

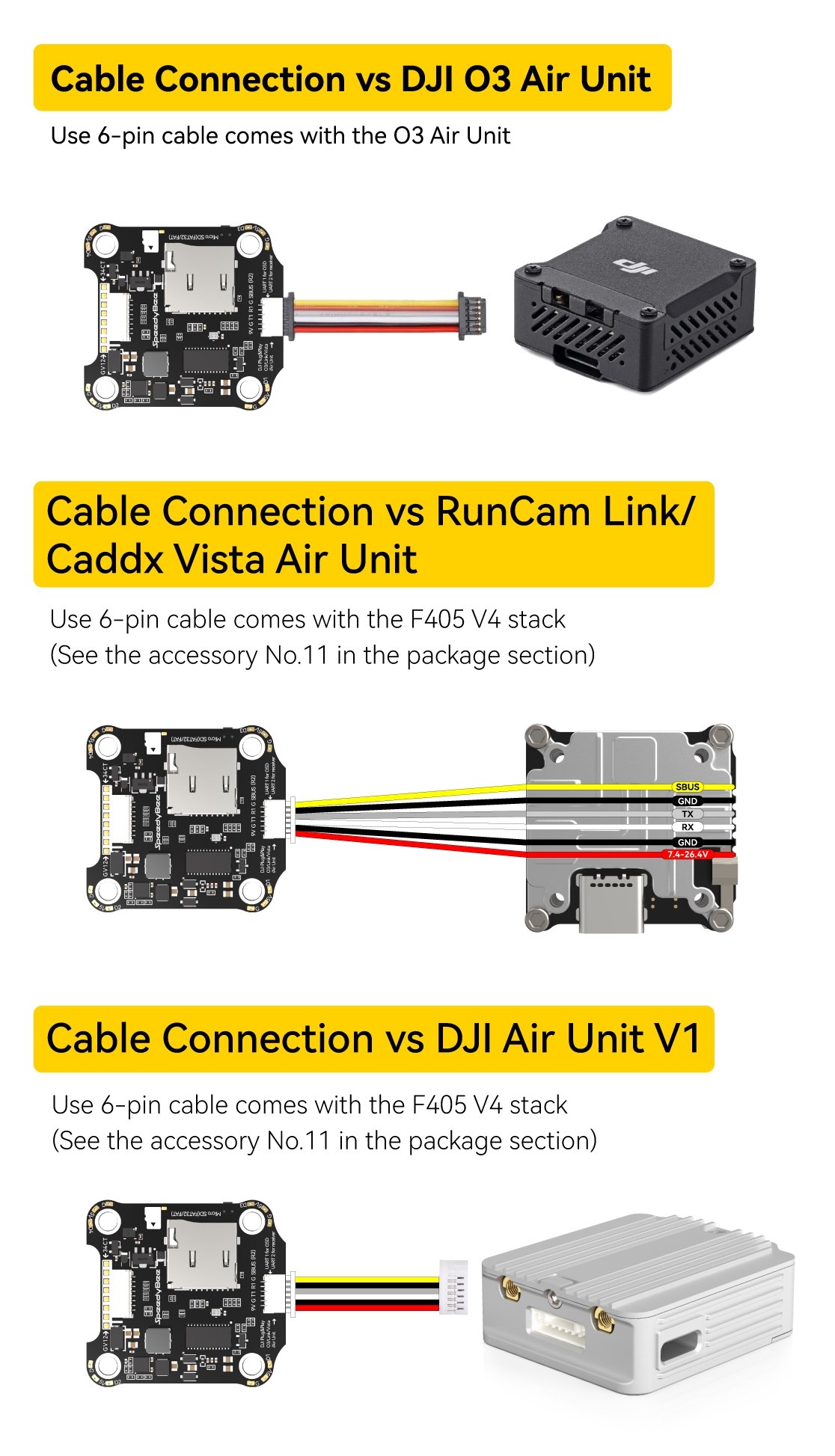

📷 DJI Air Unit Support
The FC includes a dedicated connector compatible with DJI O3, RunCam Link, Caddx Vista and DJI Air Unit V1, according to SpeedyBee's specifications.

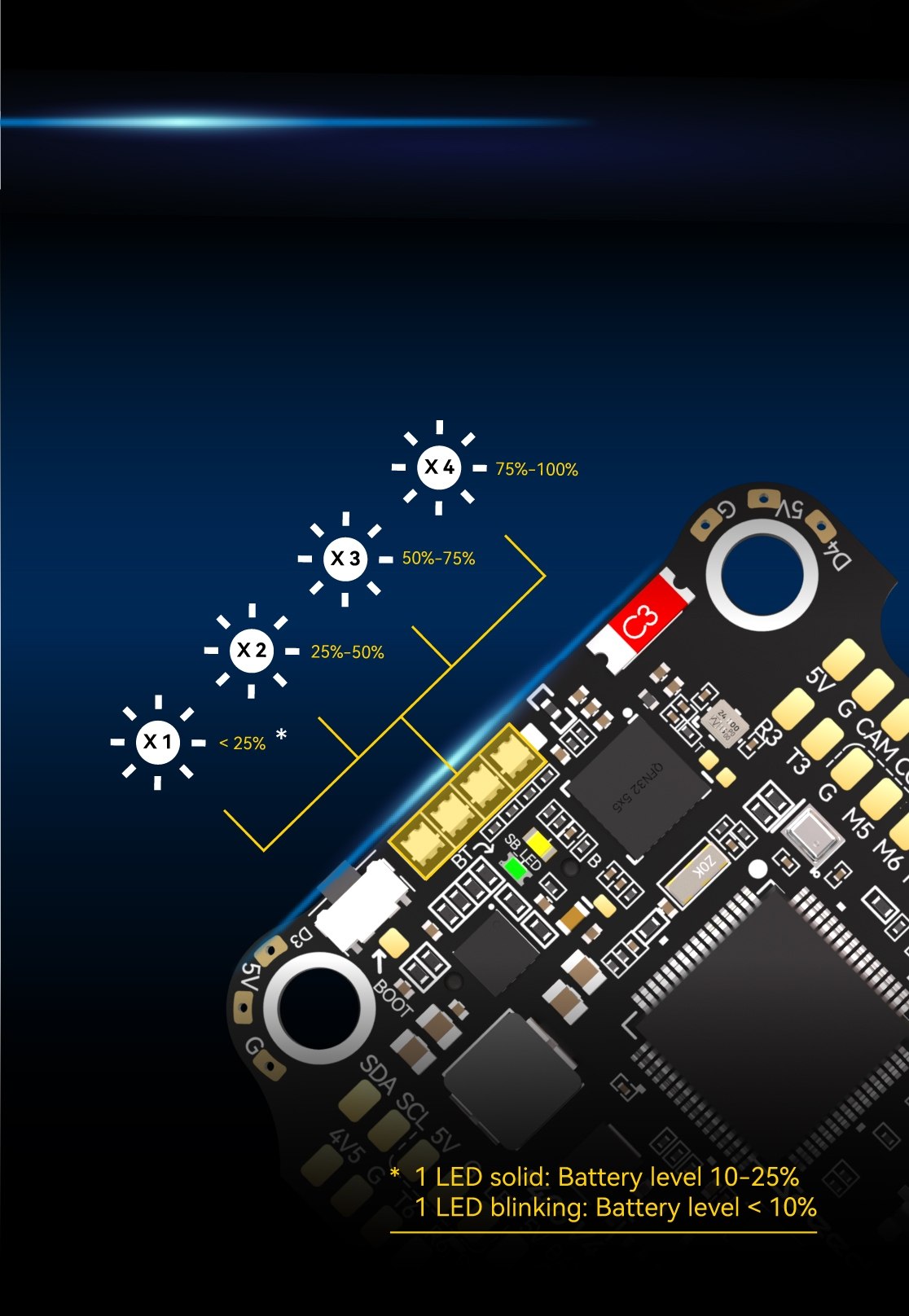

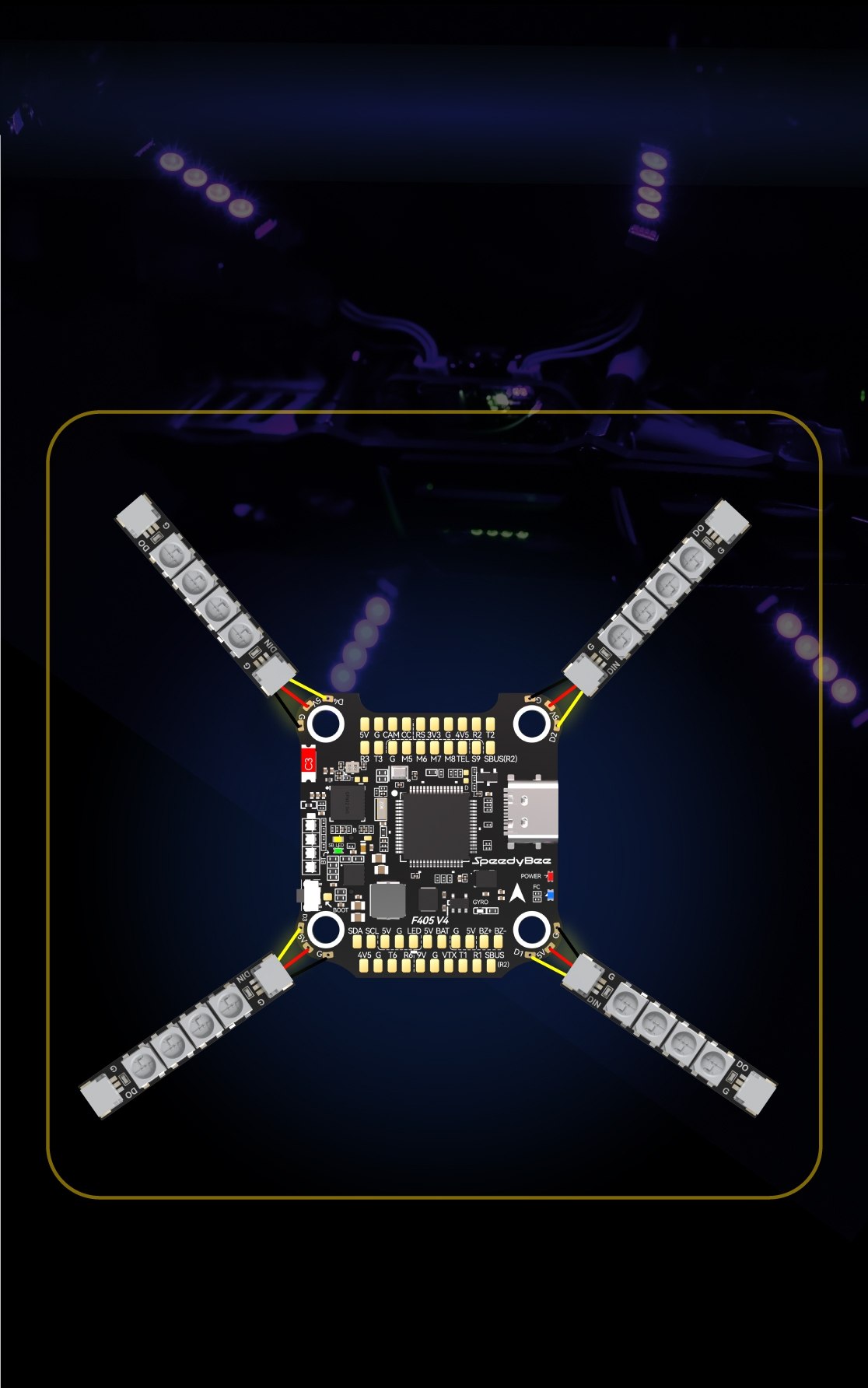

💡 LED Support
Four groups of LED outputs are available, with the BOOT button providing convenient LED control modes.
🚁 8-Motor Output
The FC provides M1–M8 motor outputs, making it suitable for configurations such as X8 and Y6 when the appropriate setup is used.

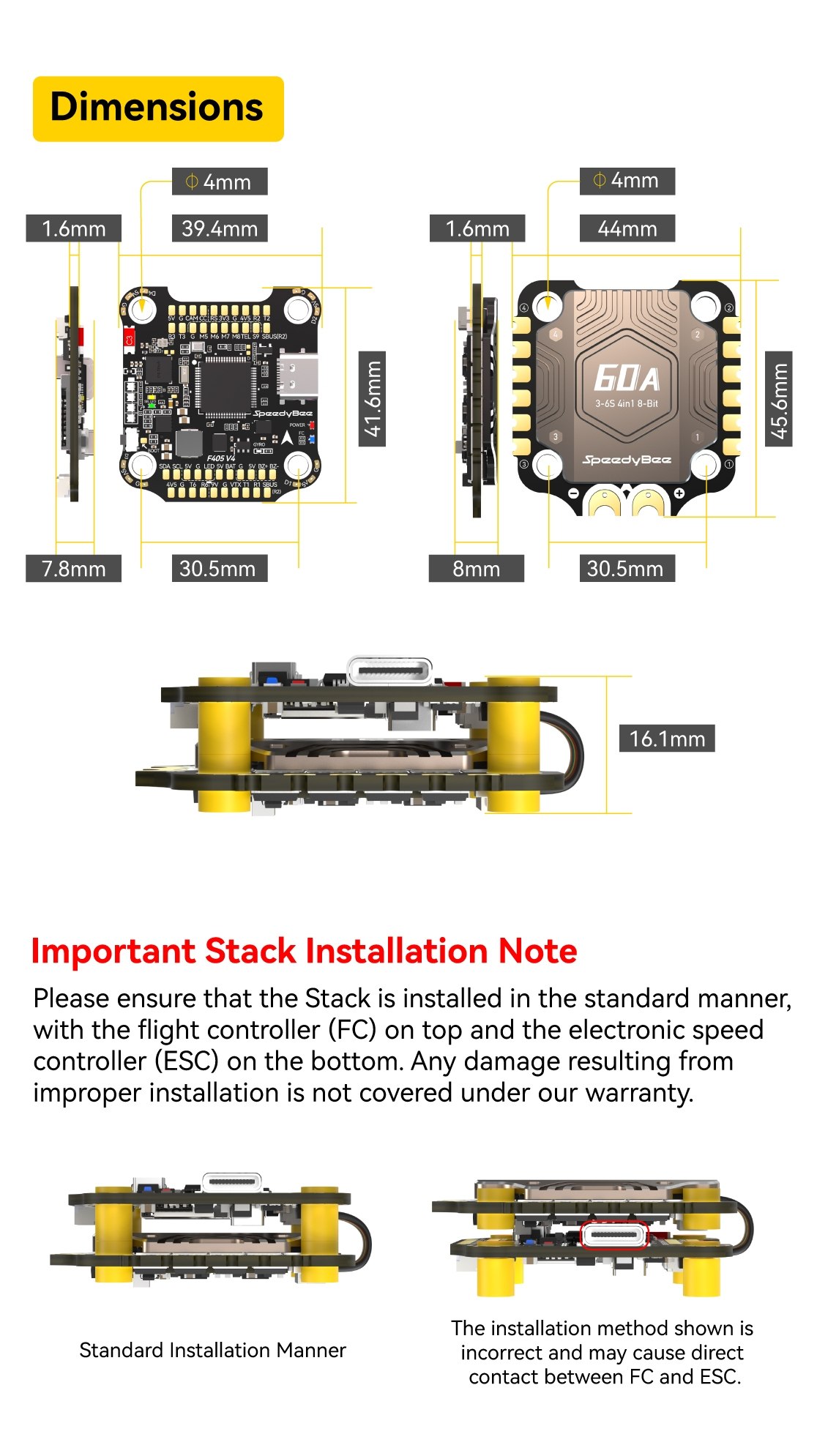

Physical Specifications
FC: 41.6 × 39.4 × 7.8mm
ESC: 45.6 × 44 × 8mm
Mounting: 30.5 × 30.5mm, 4mm mounting holes
Complete Stack Weight: Approx. 34g
Suitable For
FPV Freestyle
FPV Racing
Long-Range FPV
Custom Quadcopter Builds
X8 / Y6 Builds
GPS FPV Drones
DJI Digital FPV Builds
Advanced DIY Drone Projects

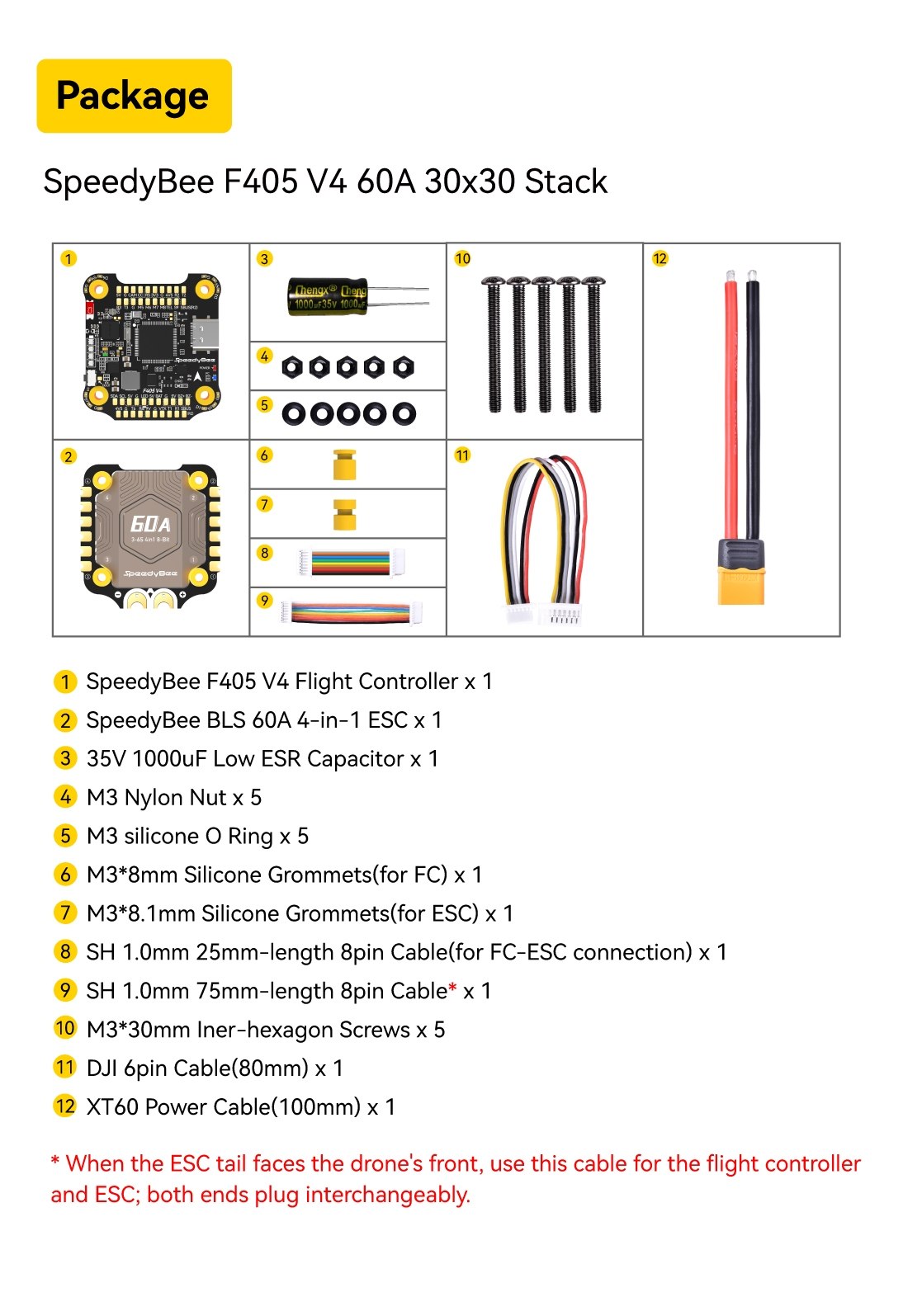

Package Includes
1 × SpeedyBee F405 V4 Flight Controller
1 × SpeedyBee BLS 60A 4-in-1 ESC
1 × 1000µF Low-ESR Capacitor
FC–ESC connection cable
Mounting hardware/accessories as supplied
Important Note
Please verify the exact product version, firmware target, battery voltage, motor compatibility and wiring before installation. Specifications can vary between production versions, so the supplied product should be checked against its included documentation.
