24% OFF

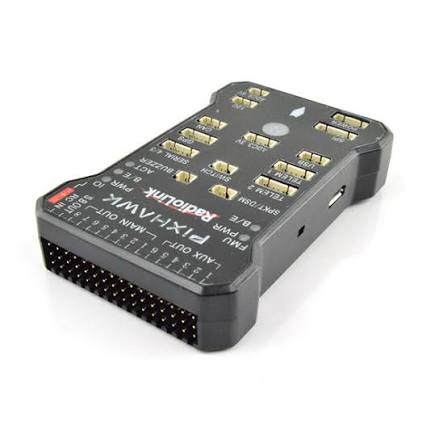

Radiolink Pixhawk Flight Controller Board GPS Support for Drones
SKU: 21441
₹21,000
₹15,999
RadioLink PIXHAWK is an open-source flight controller designed for drones, UAVs, multirotors, fixed-wing aircraft, helicopters, VTOL, cars, boats, submarines, robots and other autonomous vehicles. It features an STM32F427VIT6 main processor, MPU6000 gyro/accelerometer, IST8310 electronic compass, MS5611 barometer, dedicated GPS UART, CAN, I2C, SPI, dual MAVLink telemetry ports, SD card support and up to 14 configurable PWM/OneShot outputs. It supports GPS navigation, waypoint missions, telemetry, DShot and 2S–12S power input with the supplied power module.
GPS Support
PIXHAWK has a dedicated GPS UART interface and can be used with compatible RadioLink GPS modules.
RadioLink's SE100 GPS is specifically listed as compatible with PIXHAWK. The SE100 includes an integrated IST8310 electronic compass and supports multi-constellation satellite positioning including BeiDou, GPS, Galileo and GLONASS.
GPS Functions
- GPS-assisted navigation
- Position information
- Latitude and longitude
- Altitude information
- Distance information
- Direction information
- Waypoint navigation
- Autonomous mission support
- Return-to-home/navigation functions when configured with compatible firmware and equipment
- GPS-based position control
- External compass support
GPS Installation
When installing a GPS/compass module, RadioLink recommends keeping the GPS orientation aligned with the flight controller's direction. If the GPS and flight controller are mounted in different orientations, the corresponding orientation parameters must be configured in Mission Planner.
---
RadioLink SE100 GPS Compatibility
The RadioLink SE100 is designed to work with PIXHAWK and provides a high-precision GPS/compass solution.
SE100 highlights:
- Approx. 50 cm positioning accuracy under specified conditions
- Multi-constellation GNSS support
- GPS / BeiDou / Galileo / GLONASS
- Built-in IST8310 electronic compass
- 5V operating voltage
- 50–100mA current consumption
- Default NMEA protocol
- Automatically recognizes the connected flight-controller type and changes protocol accordingly
- Dedicated GPS and I2C connections
---
Flight Controller Sensors
Gyroscope & Accelerometer
The MPU6000 provides motion sensing for aircraft attitude and stabilization.
Electronic Compass
The built-in IST8310 provides magnetic heading information. An external GPS/compass module can also be used.
Barometer
The MS5611 barometer provides altitude-related pressure measurements for flight-control functions.
---
Receiver Compatibility
PIXHAWK supports multiple receiver signal types:
- SBUS
- PPM
- CRSF
- RSSI input
This allows it to be integrated with compatible RC radio systems and receivers.
---
Output & ESC Support
PIXHAWK provides:
Main Outputs
- 8 configurable PWM/OneShot outputs
Auxiliary Outputs
- 6 configurable PWM outputs
ESC Protocol
- PWM
- OneShot
- DShot
RadioLink specifies that DShot requires compatible firmware, with firmware version 4.0 or above stated for DShot support.
---
Telemetry & Communication
PIXHAWK provides multiple communication interfaces for connecting GPS, telemetry systems, peripherals and other UAV equipment.
Available Interfaces
- 2 × MAVLink UART
- 1 × GPS UART
- 1 × CAN
- 1 × I2C
- 1 × SPI
- SERIAL4/5
- USB
- SD card
- ADC 3.3V
- ADC 6.6V
The dual MAVLink telemetry ports can be used with compatible telemetry/data transmission equipment.
---
Supported Platforms
PIXHAWK is designed for:
- Quadcopter
- Hexacopter
- Octocopter
- Multirotor UAV
- Racing Drone
- Fixed-Wing Aircraft
- Airplane
- Glider
- Helicopter
- VTOL
- Car
- Boat
- Submarine
- Robot
- Mower
- Radar Tracker
RadioLink officially lists 2–8 copters, airplane, helicopter, VTOL, car, boat, submarine, radar tracker, robot and mower applications.
---
Power Module Specifications
The supplied RadioLink power module provides battery voltage and current monitoring.
Power Module Specification| Details
Battery Input| 2S–12S
Voltage Range| Approx. 7.4–50.4V
Maximum Current Detection| 90A
BEC Output| 5.3V ±0.2V
BEC Current| 2A
Single ESC Detection| Up to 22.5A
Power Module Weight| Approx. 24.5g without wire
---
Mission Planner & Software
PIXHAWK supports configuration and mission planning through:
- RadioLink Mission Planner
- ArduPilot Mission Planner
- QGroundControl Mission Planner
It can be used for parameter configuration, calibration, waypoint planning and other supported flight-controller functions.
---
Waypoint Capacity
The built-in 256 Kb FRAM is specified for:
- Up to 718 waypoints for multicopters
- Up to 724 waypoints for airplanes, cars and boats
Actual mission capacity can depend on firmware, parameters and mission configuration.
---
OSD & Telemetry
For RadioLink transmitter telemetry, the compatible PRM-03 OSD telemetry module can provide information such as:
- Model voltage
- Speed
- Climb rate
- Throttle
- Longitude
- Latitude
- Altitude
- GPS status
- RSSI
- Flight mode
- Yaw
- Roll
- Pitch
- Distance
PRM-03 is listed as compatible with PIXHAWK and compatible RadioLink receivers/transmitters.
---
Package Contents
The standard RadioLink PIXHAWK package includes:
1. PIXHAWK Flight Controller × 1
2. Power Module 2–12S × 1
3. Buzzer × 1
4. Safety Switch × 1
5. 4GB Micro SD Card × 1
6. Double-Sided Adhesive Tape × 2
7. Receiver Connection Cable × 1
8. Power Module Connection Cable × 1
9. Safety Switch Connection Cable × 1
10. USB Cable × 1
11. User Manual × 1
12. Packing Box × 1
---
Product Highlights
RadioLink PIXHAWK – GPS-Ready Open-Source Flight Controller for UAVs
- GPS Ready
- External GPS + Compass Support
- STM32F427VIT6 Processor
- MPU6000 IMU
- IST8310 Compass
- MS5611 Barometer
- 2 × MAVLink Telemetry
- CAN + I2C + SPI
- SBUS / PPM / CRSF
- PWM / OneShot / DShot
- 14 Configurable PWM Outputs
- 2S–12S Power Support
- 90A Current Monitoring
- SD Card Support
- Safety Switch
- Mission Planner Support
- QGroundControl Support
- Multirotor + Fixed-Wing + VTOL Support
- UAV / Robot / Rover / Boat Applications
Note: GPS is a separate module unless your particular product package is explicitly sold as a PIXHAWK + GPS bundle. RadioLink lists compatible GPS products separately.
